179631-2
Manufacturer:
TE Connectivity
Mfr.Part #:
179631-2
Datasheet:
Description:

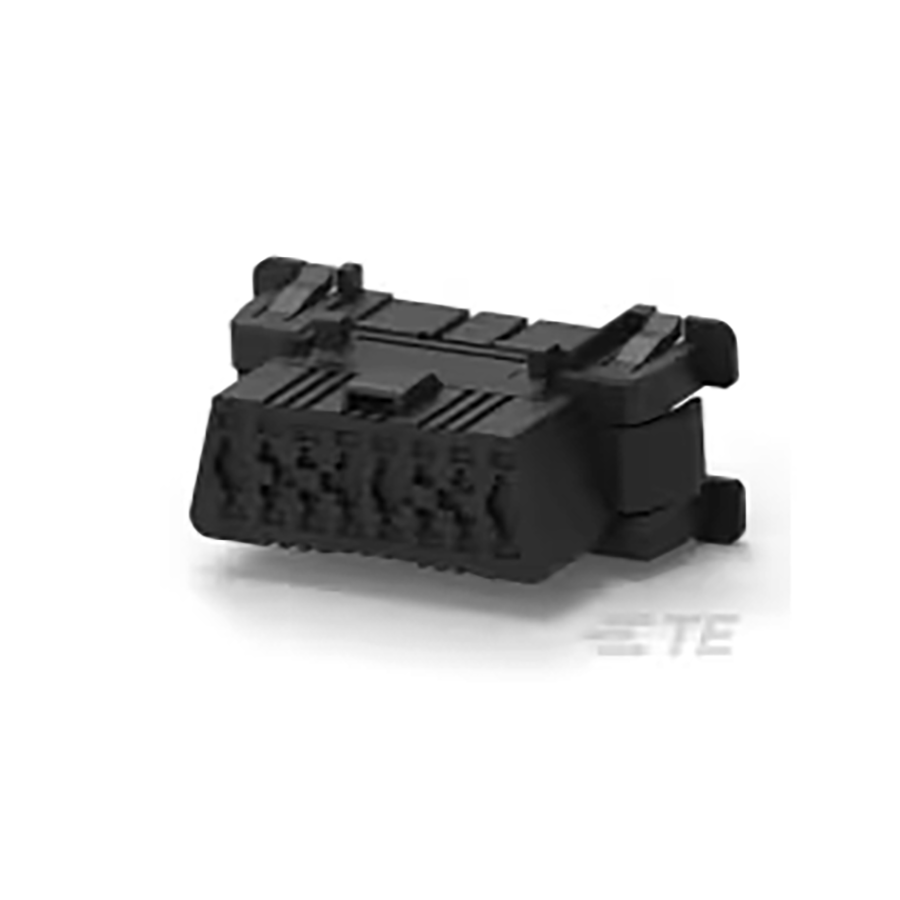

Headers and Wire Housings Panel Plug Number of Positions:16 Pitch:4 mm
| Parameter | Value |
|---|---|
| Length | 49.2 mm |
| Width | 49.2 mm |
| Termination | Crimp |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -40 °C |
| Packaging | Bag |
| Depth | 26.2 mm |
| RoHS | Compliant |
| Pitch | 4 mm |
| Current Rating | 10 A |
| Max Voltage Rating (DC) | 30 V |
| Orientation | Straight |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Color | Black |
| Gender | Male |
| Number of Contacts | 16 |
| Connector Type | Plug |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Housing Material | Polybutylene |
| Housing Color | Black |
| Schedule B | 8536695050 |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
Stock: 1114
Distributors
pcbx
pcbxUnit Price$0.90708
Ext.Price$0.90708
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.90708 | $0.90708 |
| 10 | $0.73866 | $7.38660 |
| 25 | $0.70989 | $17.74725 |
| 50 | $0.68223 | $34.11150 |
| 100 | $0.66941 | $66.94100 |
| 300 | $0.65005 | $195.01500 |
| 500 | $0.63125 | $315.62500 |
| 1000 | $0.61299 | $612.99000 |
